螺纹
Thread
|
编号
P/N
|

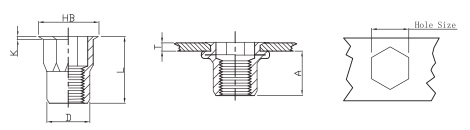

T(GRIP RANGE) Min Max |
A Ref |
Hole Size +0.1 |
D +0.07 -0.1 |
B | K | L |
M3 | RHH-IHB/SS-0325 RHH-IHB/SS-0325 |
0.5-1.5 1.5-2.5 |
5.2 5.5 |
5.0 | 4.9 | 6.0 | 0.5 | 9.0 11.0 |
M4 | RHH-IHB/SS-0420 RHH-IHB/SS-0440 |
0.5-2.0 2.0-4.0 |
8.0 | 6.0 | 5.9 | 7.0 | 0.5 | 12.0 14.0 |
M5 | RHH-IHB/SS-0525 RHH-IHB/SS-0540 |
0.5-2.5 |
8.2 | 7.0 | 6.9 | 8.0 | 0.6 0.5 |
13.0 15.0 |
M6 | RHH-IHB/SS-0630 RHH-IHB/SS-0650 |
1.0-3.0 3.5-5.0 |
10.7 | 9.0 | 8.9 | 10.0 | 0.6 | 16.0 18.0 |
M8 | RHH-IHB/SS-0835 RHH-IHB/SS-0850 |
1.0-3.5 3.5-5.0 |
11.2 | 11.0 | 10.9 | 12.0 | 0.65 | 17.5 19.5 |
M10 | RHH-IHB/SS-1040 RHH-IHB/SS-1050 |
1.0-4.0 3.5-4.0 |
13.5 | 13.0 | 12.9 | 14.5 | 0.75 | 21.0 23.0 |
M12 | RHH-IHB/SS-1240 RHH-IHB/SS-1260 |
1.0-4.0 4.0-6.0 |
14.8 | 16.0 | 15.9 | 17.5 | 0.8 | 24.0 27.0 |
